Funcions

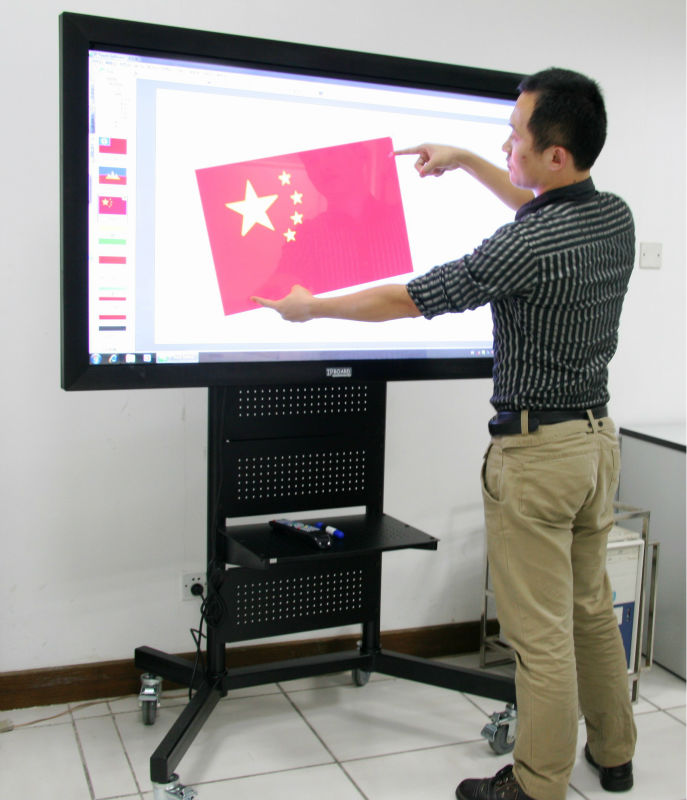

l  Interactive touch function

MTS Touch LED TV has an interactive touch capabilities, embedded MTS high-speed infrared touch screen, after connected with the computer, it can be controlled the computer with specific application software, to achieve interactive applications.

l  Multi-touch function

MTS Touchable LED TV built-in MTS touch screen with the multi-touch functions (2/4/8 points) under Windows 7 Operating system; enabling the objects (such as pictures, PDF, PPT etc.,) to zoom, drag, rotate and other functions.

l  Free calibration function

MTS Touch LED TV built-in MTS touch screen to supports for free calibration function, users can plug and play (the factory set is Windows 7 multi-touch mode).

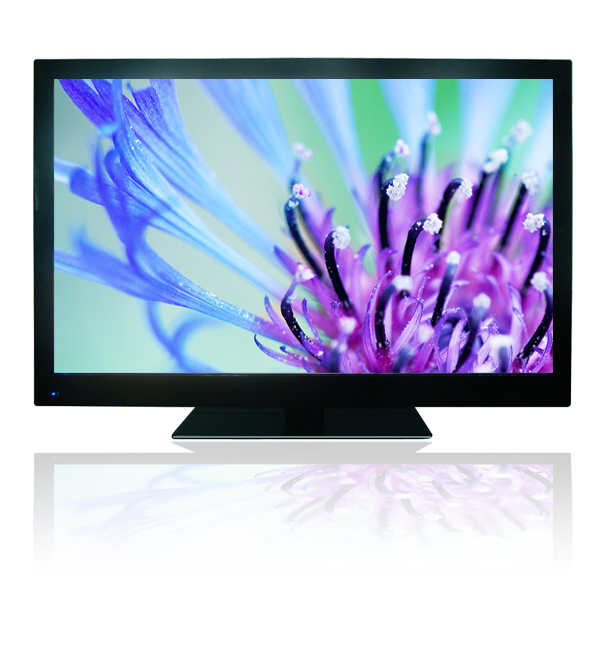

l  High-quality LED screen

High brightness, high contrast, figure shows with point by point, color optimization, motion picture and still image quality improvement function, true to the perfect picture.

l  Digital multimedia broadcasting function

With plugging USB 1.1 & USB2.0 standard equipment, it can browse images, watch movies, listen to music etc.

l  Multimedia function

MTS Touch LED TV has a VGA port, can be used as computer monitor, but also with HDMI, USB, component input, audio output with a variety of external devices.

l  Remote and mouse function

MTS Touch LED TV can be optional remote & mouse function with distance, everything can under the control. (Optional function)

l  The touch response speed ups to 300 dots.

High-speed touch screen, writing perfect track restore and responsive.

l  Three touch modes can be selected

According different environments, there are three touch modes can be selected: single touch mode, mouse mode, multi-touch mode.

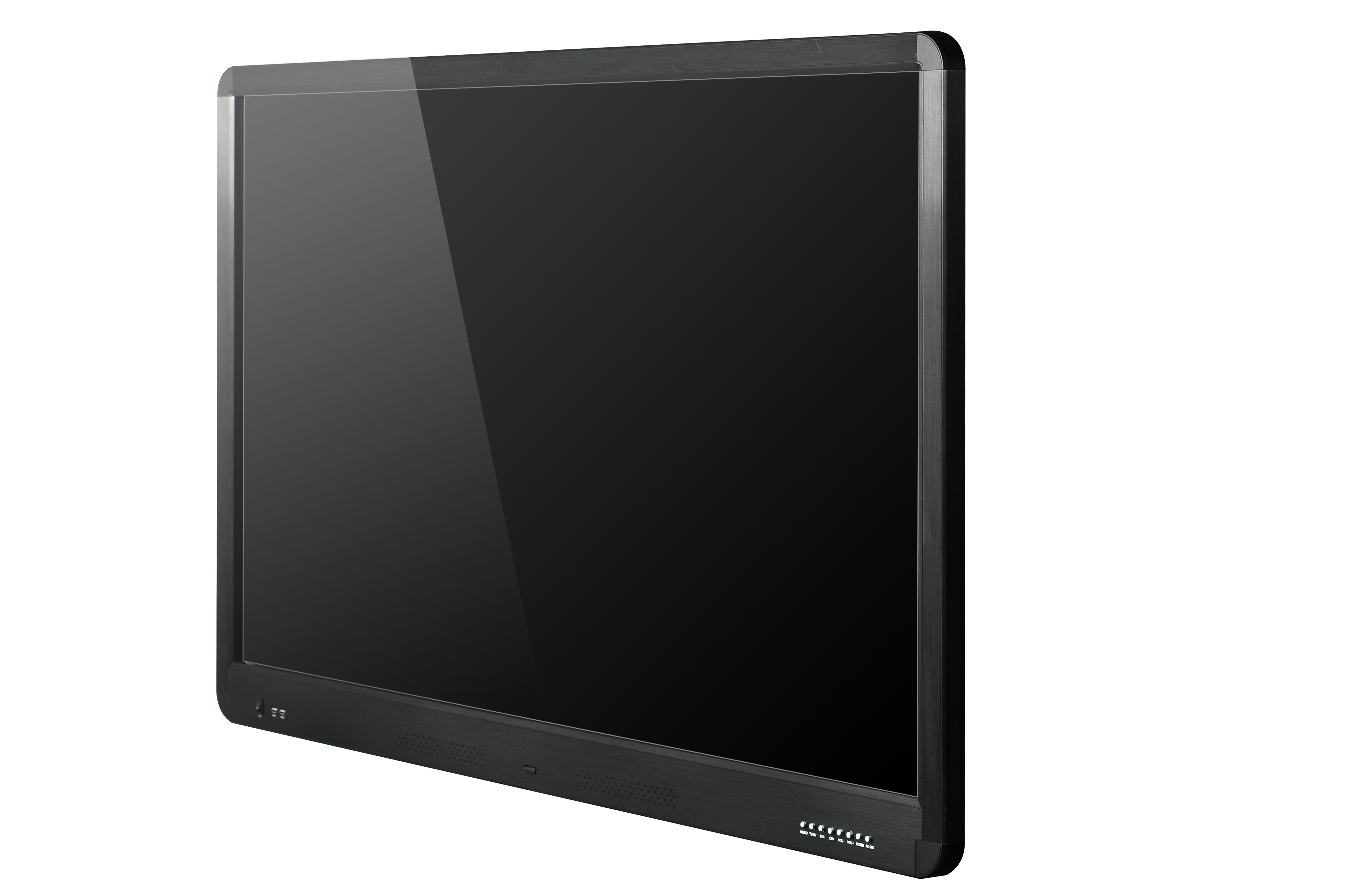

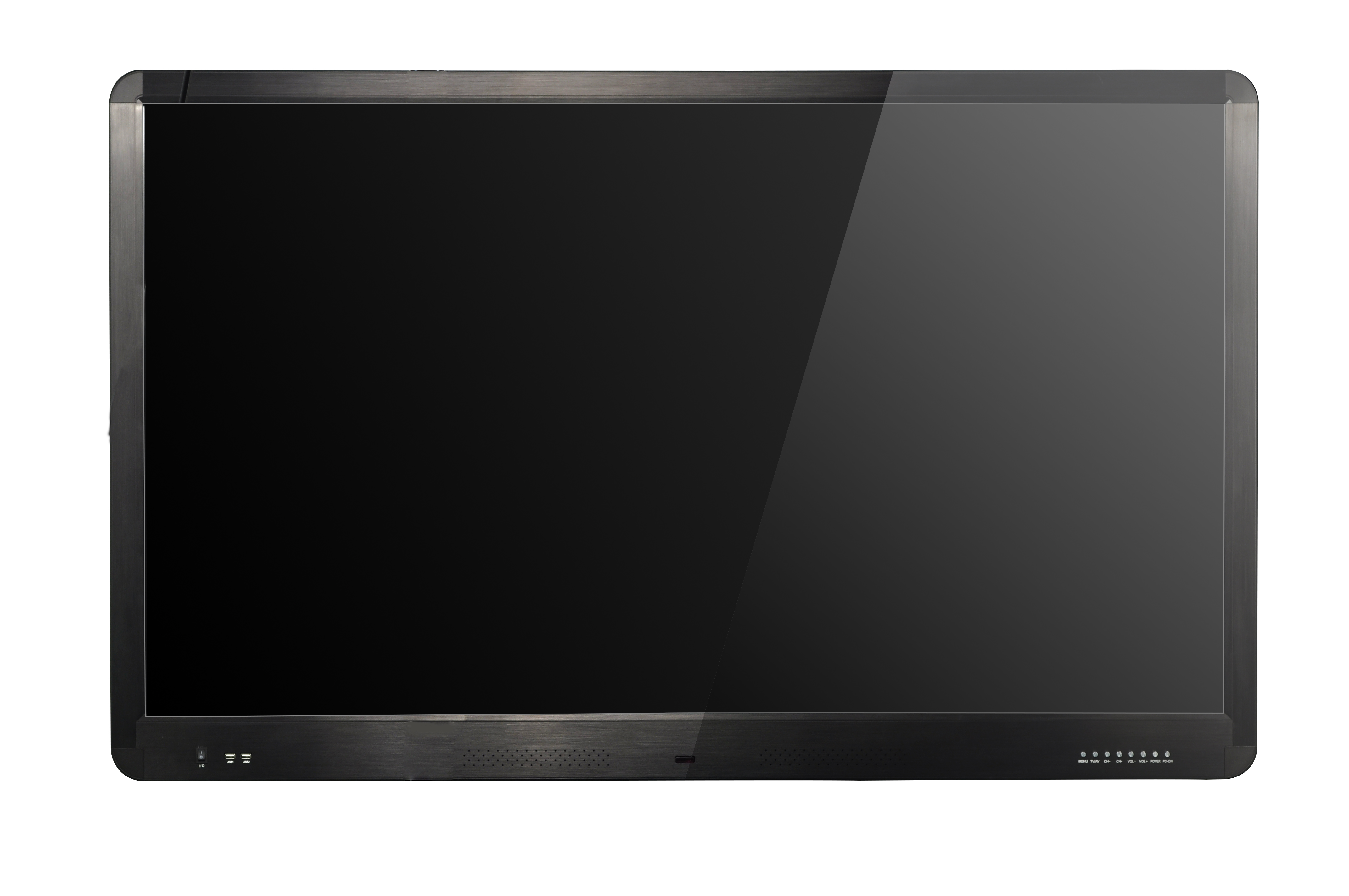

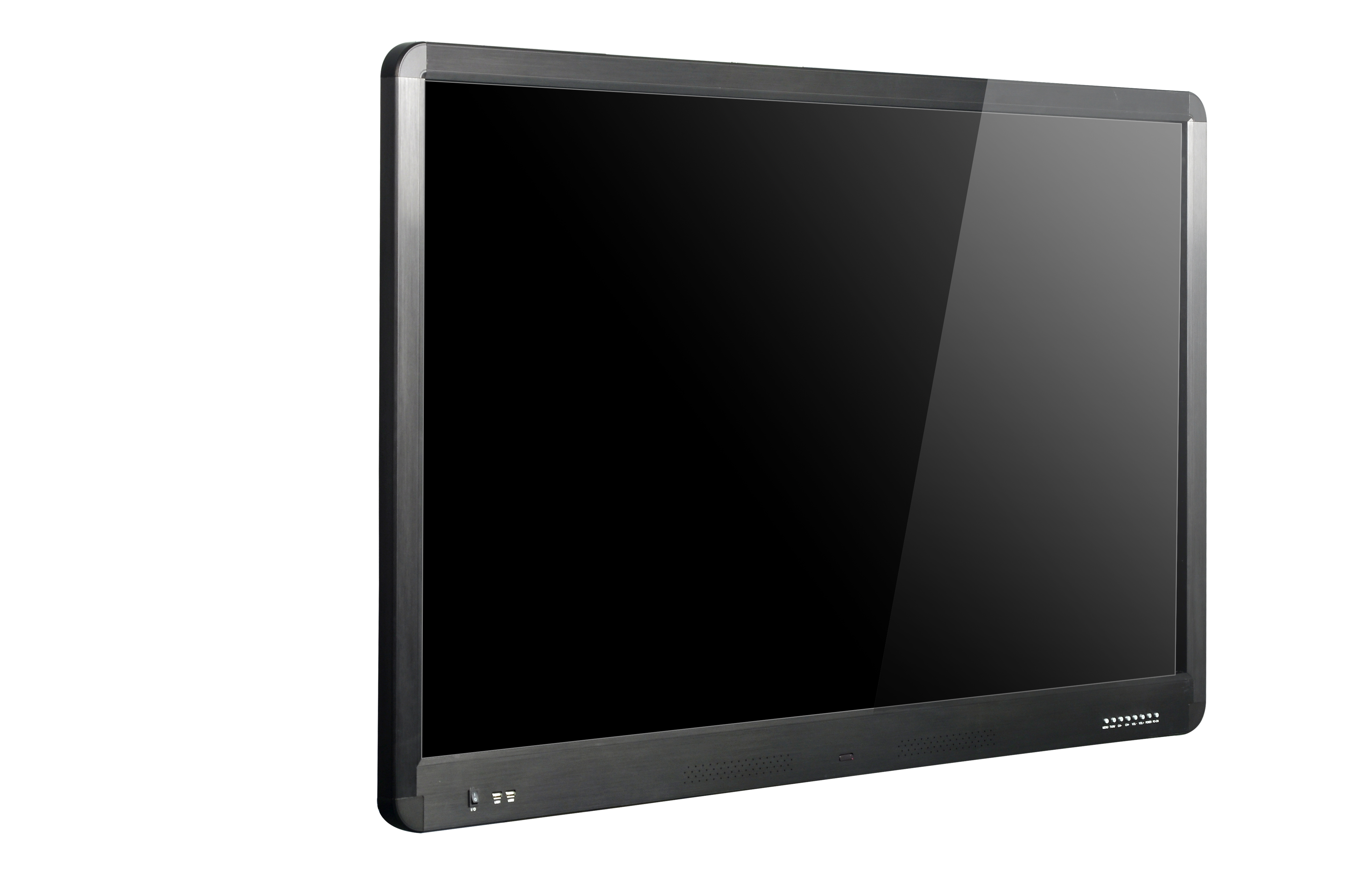

60 inch Interactive Flat Panel Display

• 1
  60 inch Interactive Flat Panel Display.pdf

  	Interactive Touch Panel
  Model	T42LE(IR)	T55LE(IR)	T60L(C)	T65LE(IR)	T70LE(IR)	T84LE(IR)
  Size(inch)	42"	55"	60"	65"	70"	84"
  Outline Dimension (mm)	1257(H)×626(V)×90(D)	1287(H) × 745(V)×115(D)	1450(H) × 862(V)×160(D)	1508(H) × 878(V) ×115(D)	1660(H) × 991(V) × 125(D)	2136(H)×1286(V)×125(D)
  Display Area (mm)	930(H)×523(V)	1209 (H) × 680 (V)	1329.1(H) × 747.6(V)	1428 (H) ×803 (V)	1539(H) × 865 (V)	1904(H)×1096(V)
  Packing Size (±5mm)	1090*140*730	1540*260*1250	1630*290*1020	1730*260*1130	1850*260*1150	2195*250*1340
  Gross Weight( ±2kg)	35	66	73	89.5	82.1	119.7
  Screen Type	LED (Optional: LCD)
  Display Ratio	16:9
  Brightness	350 cd/m2 – 500 cd/m2
  Resolution	Full HD 1920×1080					Full HD 1920×1080 (Optional: Ultra HD 4K×2K)
  Technology	Infrared Sensing or Optical Sensing
  Operation System	Windows 2000/ XP/Vista/7 /8, Mac, Linux
  Touch Type	2/4/8 points and Multi-touch gesture recognition
  Touch Way	Finger, pen, or any other non-transparent objects
  Built-in PC (Optional)	I5/4G/500G (Customized)
