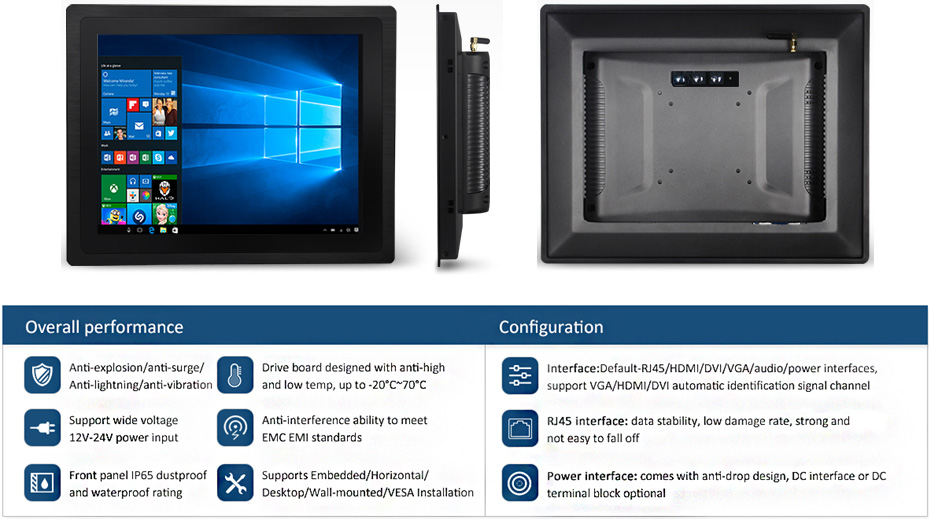

PM Series
are designed as Panel Mount solution. The true flat IP65 front panel reduces the possibility of debris accumulation and corrosion. MTS provides a wide range of industrial touch Panel PC products in different sizes, high brightness displays, and customizable high performance hardware configurations that are designed and certified to work under harsh environments and various automation applications.
Features
1. Capacitive Touchscreen:10-point capacitive touch screen, 5 ms response.
2. Aluminum alloy enclosure, better performance of heat dissipation.
3. Optional color for black and silver.
4. Waterproof IP65 at the surface, true flat front panel structure.
5. System compatible with touchscreen monitor/Andorid or X86 touch screen AIO PC.
6. Flexible customizatoin for USB and COM por, color, logo, camera, card reader, fingerprint, PoE power supply.
7. Plug and play, no any driver needed.
8. Support multiple installation methods with embedded, wall-mounted, desktop, VESA.
Touch Screen Parameters
|
Touch Screen:
|
Capacitive Touch/ Resistive Touch
|
|
Response Time:
|
5ms
|
|
Touch Points:
|
Capacitive 10 points Multi-touch/ Resistive Single-touch
|
|
Touch Materials:
|
Finger, Stylus
|
|
Scanning Frequency:
|
200 Hz
|
|
Scanning Accuracy:
|
4096x4096
|
|
Communication Mode:
|
Full Speed USB 2.0/3.0
|
|
MTBF:
|
5000 Million Times
|
|
Operating Current:
|
180Ma/DC+5V
|
|
Anti-light Interference:
|
Under Sunlight and Other Lights
|
|
Touch Data Output:
|
Coordinate Output
|
|
Hardness:
|
Mohs 7 Explision-proof Tempered Glass
|
|
Operating System:
|
Windows XP/7/8/10/Linux/MAC/Android
|
|
Driver:
|
Free Driver, Plug and Play
|
LED Screen Parameters
|
Screen Type:
|
LED Backlight, A-type
|
|
Refresh Frequency:
|
60Hz
|
|
Viewing Angle:
|
89°/89°/89°/89° (R/L/U/D)
|
|
MTBF:
|
50,000 hrs
|
Power Supply Parameters
|
Input Power:
|
110-240V AC 50/60Hz
|
|
Power Consumption:
|
60W ~ 90W |
Working Environment
|
Operating Temperature:
|
-10°C ~ 60°C
|
|
Operating Humidity:
|
10% ~ 80%
|
|
Storage Temperature:
|
-20°C ~ 80°C
|
|
Storage Humidity:
|
5% ~ 90%
|
Computer Configuration
Program: |
Touch Monitor
|
Android
|
X86 Standard
|
X86 Deluxe
|
|
Chip:
|
Industrial Driver Board
|
RK3368/RK33288/RK3399
|
Intel Celeron Quad Core J1900
|
Intel Core i3/i5/i7
|
|
Memory:
|
-
|
2GB/4GB
|
2GB/4GB/8GB/16GB
|
|
Storage:
|
-
|
8GB/16GB/32GB
|
SSD 32GB/64GB/128GB/256GB/512GB, HDD 500GB/1T
|
|
Graphics:
|
-
|
Android HD
|
Core Graphics
|
|
Resolution:
|
-
|
720P/1080P
|
|
OS:
|
-
|
Android 7.1
|
Windows XP/7/8/10/Linux/MAC
|
|
Network:
|
-
|
Gigabit Network Card; Wireless Module 802.11a/b/g/n
|
