Key Feature
| Product Name: | IP65 Industrial Android Tablet PC 15 Inch | CPU: | RK3288 Cortex-A17 Quad Core,1.8GHz |
|---|---|---|---|
| RAM: | 2GB DDR3 | Storage: | EMMC 16G |
| Panel Size: | 15 Inch | Resolution: | 1024*768 |
| Brightness (cd/m²): | 400 Cd/m² | Touchscreen Type: | 10 Points Project Capacitive Touch |
1. 15 Inch WXGA (1024 x768 ) TFT LCD Display with LED backlight.
2. Processor is ARM® RK3288 Cortex-A17 quad core,1.8GHz, support Android™ v 6.0.
3. LP DDR2 2GB, 16GB eMMC on board storage.
4. Touchsreen is 10 points Projected Capacitive.
5. Full case is IP65 dustproof and waterproof.
| Model:UMSC15-AIP | |
| System |
|
| CPU | RK3288 Cortex-A17 quad core,1.8GHz |
| Memory | 2G , ( Max. 4G) |
| Storage | eMMC 16G |
| Decoding Resolution | Support maximum 2048*1536 |
| Operation System | Android 6.0 |
| Play Modes | Support timing, loop and spots etc. play modes |
| Network Support | RJ45, WIFI, 3G, 4G , TD-LTE (optional) |
| Image Format | JPG/BMP/GIF/TIFF/PNG |
| Video Format | RMVB,FLV,MPEG1/2/4, AVI, WMV, MOV, MP4, TS etc. |
| Audio Format | MP3,WMA,AAC,etc. |
| RTC Real Time Clock | YES |
| I/O Interfaces | |
| USB | 1×USB |
| COM | Optional |
| LAN | 1×RJ45, 10M/100M adaptive ethernet |
| HDMI | 1×HDMI , support 1080p |
| DC | 1×DC |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness | 400 cd/m² |
| Response time | 5ms |
| Contrast ratio | 500:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 point capacitive touch |
| Touch response time | <2ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V (working voltage 8-36V) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum alloy + High strength cold rolled steel |
| Color | Black, white, Silver , color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | IP65 |
| Operating Environment | |
| Working temperature | -10°C to 55°C |
| Relative humidity | <85% |
| Vibration resistance | 5-19Hz/1.0mm amplitude , 19-200Hz/1.0g acceleration |
| Impact resistance | 10g acceleration , 11ms period |
| Packing Details | |
| Net weight | 5 kg |
| Gross weight | 6 kg |
| Product Dimension | 38.39×30.84×4.15 cm |
| Packing size | 47×44×18 cm |
| Accessories | Power adapter,embedded screws,warranty card, user manual |
| Other | |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor | |
| Customization | 3G,4G,Webcam, RFID reader etc. optioanal |
| Warranty | 3 years warranty |

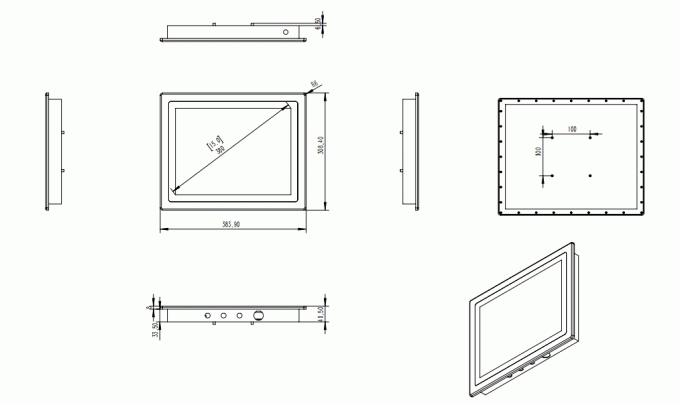

Drawing

Application
Field service
Law enforcement
Defense
Public sector
Utilities
Logistics
Warehouse
Healthcare
Hospitality
Retail management
Some other semi- outdoor
Full outdoor application.
