Key Feature
Features: | With Wifi Bluetooth | Product Name: | 10.1 Inch Industrial Android Tablet PC |
---|---|---|---|
CPU: | Rockchip RK3288 quad core processor, clocked 2.0G | Memory: | 2G, ( Max. 4G) |
Storage: | EMMC 8G | Resolution: | 1280*800 Widescreen |
Touchscreen Type: | 10 Point Capacitive Touch | Operation System: | Android 6.0 |
1. 10.1" LCD panel, widescreen 16:10, full view angle
2. Rockchip RK3288 quad core processor, clocked 2.0G
3. RAM 2GB, eMMC 8GB
4. 10 Point capacitive touch
5. With wifi, bluetooth
6. Android 6.0 operating system
7. Theftproof cover plate
Model: UMSC101-SPA
Display | Screen | 10.1 inch IPS screen |
Resolution | 1280×800 | |
Brightness | 300 cdm2 | |
Contrast | 800:1 | |
Screen scale/Display area | 16:10/ Display area : 217×135mm | |
Configuration | CPU | Rockchip RK3288 quad core processor, clocked 2.0G |
RAM | 2GB | |
ROM | 8GB | |
System | Android 6.0 | |
Network | WIFI | 802.11b/g/n |
Ethernet | Supports connection to the RJ45 network interface | |
Bluetooth | Bluetooth 4.0 | |
3G/4G | Support external 3G/4G USB dongle | |
Jack | SD | 1×SD card slots (max support 32GB) |
Mini USB | 1×USB OTG (through it to debug the machine, brush the system program) | |
USB 2.0 | 2×USB 2.0 interface (support U disk, mouse, keyboard, printer etc) | |
RJ45 | 1×RJ45 network interface support POE | |
Earphone | 1×3.5mm headphone jack | |
Power | 1×4.0mm power DC jack | |
Multi-Media | Video | Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P) |
Audio | Support MP3, WMA, AAC and so on | |
Picture | JPEG、JPG | |
Other parameters | Wireless mouse keyboard | Support |
Speaker | 2×2W speakers | |
Camera | Standard 200W pixel camera (500W pixel camera optional) | |
OSD language | Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations | |
Software support | Free installation applications (maps, games, e-mail, self developing apps, etc.) | |
Attachment | Adapter | One, specifications: 5V/2A or 12V/1A |
Desktop Bracket | One | |
Remote cotrol | No | |
use's Manual | One | |
Theftproof cover plate | One, (can cover insert devices, such as U disk or SD card, to prevent theft) |

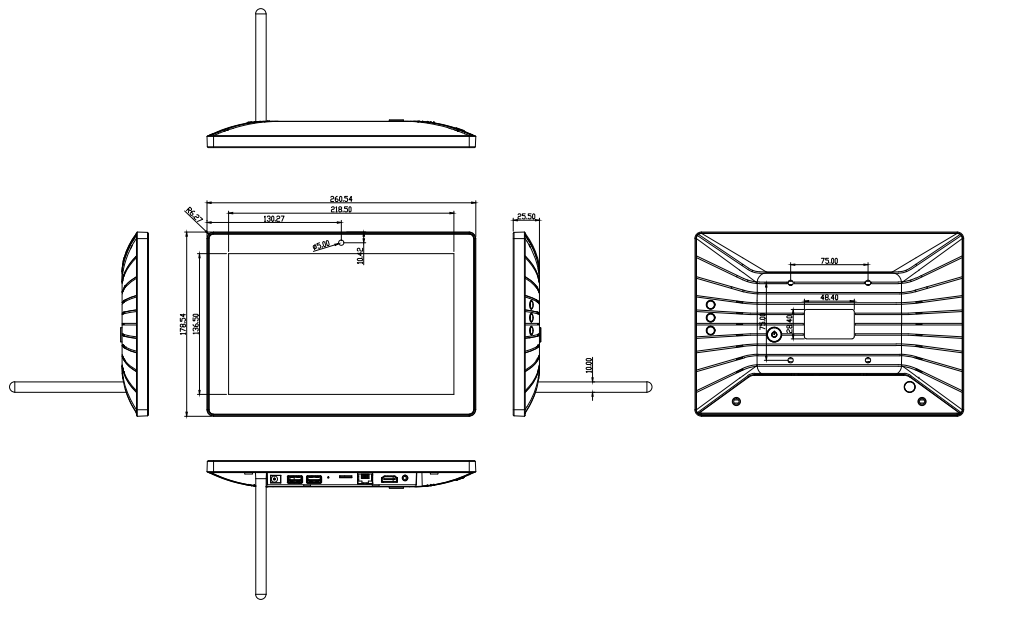

Drawing
Application
From retail and entertainment to corporate offices and signage, the UM-SPA series is an excellent choice to meet the demands of continuous public use.
In-store interaction
Point of sale
Wayfinding
Door acess control
Digital signage
Hospitality environments
