Key Feature

Features: With Wifi Bluetooth Product Name: 21.5 Inch Industrial Android Tablet PC
CPU: RK3399 Dual-core Cortex-A72 up to 1.8GHz Memory: 2G, ( Max. 4G)
Storage: EMMC 16G Resolution: 1920×1080 Widescreen
Touchscreen Type: 10 Point Capacitive Touch Operation System: Android 7.0

21.5 inch android 7.0 industrial panel PC

1. 21.5" LCD panel, widescreen 16:10, full view angle
2. Rockchip RK3288 quad core processor, clocked 2.0G
3. RAM 2GB, eMMC 16GB
4. 10 Point capacitive touch
5. With wifi, bluetooth
6. Android 7.0 operating system
7. Theftproof cover plate

Model: UMSC215-SPA


Screen screen 21.5 inch FULL HD IPS screen
Resolution 1920×1080
Brightness 1000 cdm2
contrast 1000:1
Display area 169/ Display area : 475×267mm
configuration CPU K3399 Dual-core Cortex-A72 up to 1.8GHz
Ram 2GB
ROM 16GB
OS Android 7.0
Network WIFI 802.11b/g/n
Ethernet  Supports connection to the RJ45 network interface
Bluetooth Bluetooth 3.0
3G/4G Support external 3G/4G USB dongle
Interface SD 1×SD card slots (max support 32GB)
Mini USB 1×USB OTG (through it to debug the machine, brush the system program)
USB 3×USB 2.0 interface (support U disk, mouse, keyboard, printer etc)
RJ45 1×RJ45 network interface
earphone 1×3.5mm headphone jack
Power 1×4.0mm power DC jack
Media plays video Support MPEG-1, MPEG-2, MPEG-4, H.263, H.264, RV, etc. (max support 1080P)
Audio Support MP3, WMA, AAC and so on
picture JPEGJPG
Others Wireless mouse keyboard support
speaker 2×3W speakers
camera Standard 200W pixel camera (500W pixel camera optional)
OSD language Chinese, English, German, Korean, Russian, French, Spanish, Arabia etc OSD operations
Casing..and.material plastic.and..metal.casing.optional
Accessories Adapter One, specifications: 12V/3A
Desktop Bracket one
Remote control optional
User's manual one
Theftproof cover plate One, (can cover insert devices, such as U disk or SD card, to prevent theft)

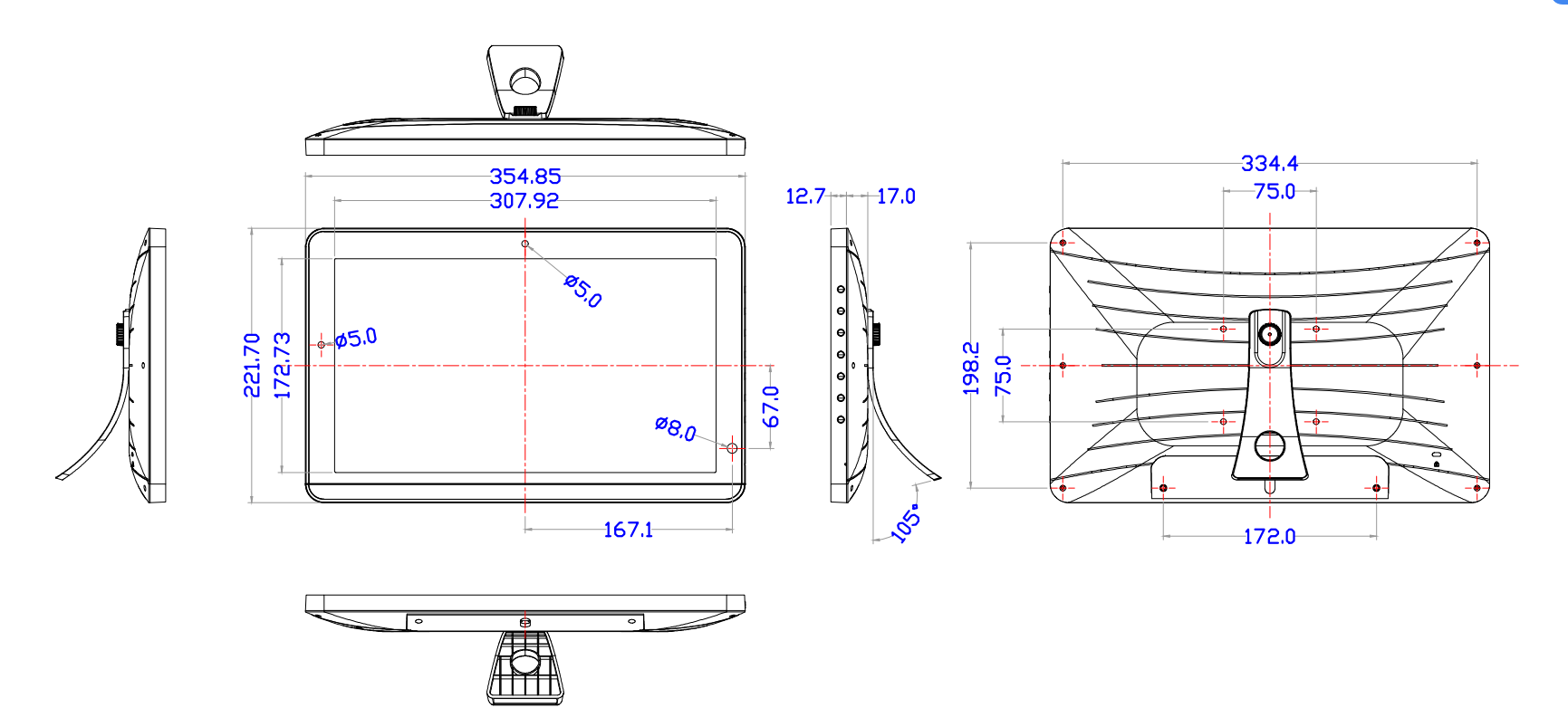

Drawing


Application


From retail and entertainment to corporate offices and signage, the UM-SPA series is an excellent choice to meet the demands of continuous public use.
In-store interaction
Point of sale
Wayfinding
Door acess control
Digital signage
Hospitality environments
