Digital Signage KIOSK Series
offers touch screen advertising signage player Floor-stand advertising player. MTS signage player is outstanding with fresh appearance, easy operation and flexible installation. Instead of single touch, MTS offers 10 points multi-touch to satisfy your need on advertising and interactive with multi-users. The displays are in 16:9 aspect ratio with the size of 21.5”, 32”, 43”, 49”, 55” and 65”.
The advertising player series are the best choice for digital signage, interactive information, kiosk, industry automation and other applications.

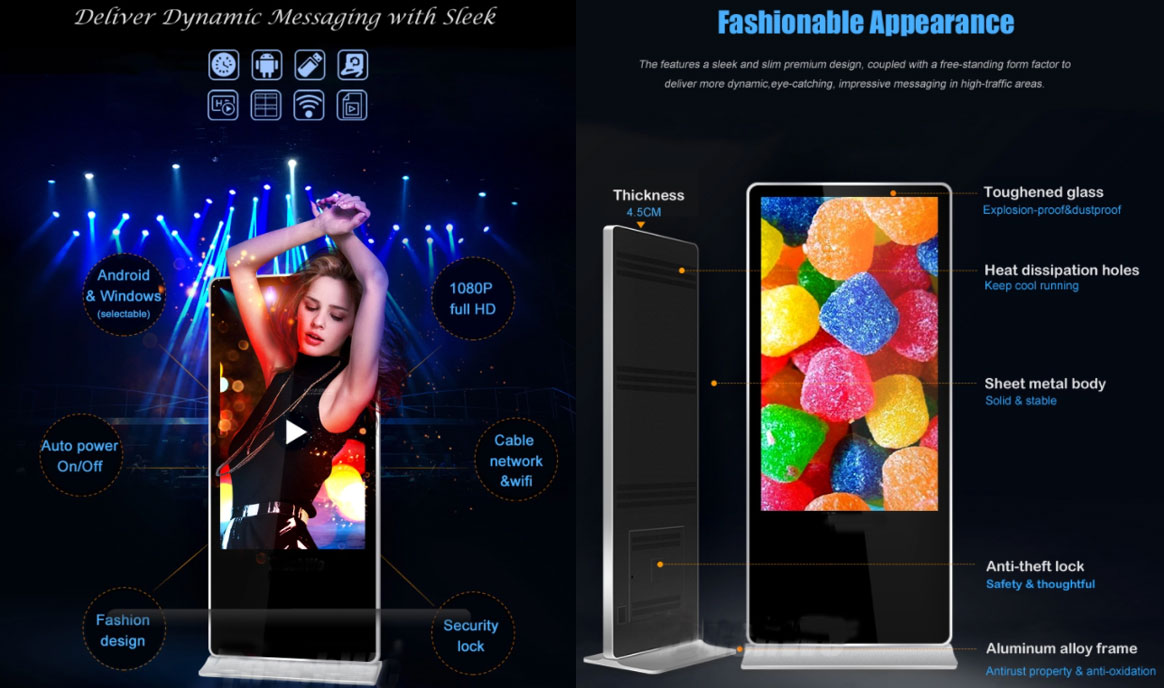

Features
1. Sharp, exquisite appearance with full metal chassis
2. Toughened glass with Level 7 Mohs hardness
3. Thick metal plate inside to robust structure
4. Durable stand without shaking
5. Wheels – installation is optional
6. System compatible with touch screen monitor/ Windows/ Android touch all-in-one PC
Touch Screen Parameters
|
Touch Screen:
|
Capacitive Touch
|
|
Response Time:
|
5ms
|
|
Touch Points:
|
10 points Multi-touch
|
|
Touch Materials:
|
Finger, Stylus
|
|
Scanning Frequency:
|
200 Hz
|
|
Scanning Accuracy:
|
4096x4096
|
|
Communication Mode:
|
Full Speed USB 2.0/3.0
|
|
MTBF:
|
5000 Million Times
|
|
Operating Current:
|
180Ma/DC+5V
|
|
Anti-light Interference:
|
Under Sunlight and Other Lights
|
|
Touch Data Output:
|
Coordinate Output
|
|
Hardness:
|
Mohs 7 Explision-proof Tempered Glass
|
|
Operating System:
|
Windows XP/7/8/10/Linux/MAC/Android
|
|
Driver:
|
Free Driver, Plug and Play
|
LED Screen Parameters
|
Screen Type:
|
LED Backlight, A-type
|
|
Refresh Frequency:
|
60Hz
|
|
Viewing Angle:
|
89°/89°/89°/89° (R/L/U/D)
|
|
MTBF:
|
50,000 hrs
|
Power Supply Parameters
|
Input Power:
|
110-240V AC 50/60Hz
|
|
Power Consumption:
|
60W or 120 ~ 280W
|
|
Standby Power Consumption:
|
1W
|
Working Environment
|
Operating Temperature:
|
-10°C ~ 60°C
|
|
Operating Humidity:
|
10% ~ 80%
|
|
Storage Temperature:
|
-20°C ~ 80°C
|
|
Storage Humidity:
|
5% ~ 90%
|
Computer Configuration
Program: |
Touch Monitor
|
Android
|
X86 Standard
|
X86 Deluxe
|
|
Chip:
|
Industrial Driver Board
|
RK3368/RK33288/RK3399
|
Intel Celeron Quad Core J1900
|
Intel Core i3/i5/i7
|
|
Memory:
|
-
|
2GB/4GB
|
2GB/4GB/8GB/16GB
|
|
Storage:
|
-
|
8GB/16GB/32GB
|
SSD 32GB/64GB/128GB/256GB/512GB, HDD 500GB/1T
|
|
Graphics:
|
-
|
Android HD
|
Core Graphics
|
|
Resolution:
|
-
|
720P/1080P
|
|
OS:
|
-
|
Android 7.1
|
Windows XP/7/8/10/Linux/MAC
|
|
Network:
|
-
|
Gigabit Network Card; Wireless Module 802.11a/b/g/n
|
