Self-Service KIOSK Series
MTS self-service Kiosk is equipped with P-cap touch screen. You can freely add Peripherals you
need by modular design. Advanced industrial design also makes it one of the thinnest and
robust kiosk on the market.
MTS self-service Kiosk has been widely applied in many occasions, including shopping malls, supermarkets, restaurants, car showrooms, brand monopoly, hotel halls, expositions, industrial parks, banks, government units, etc., Years of vigorous investment in research and development have made our products more competitive than their peers, both in technology and in practical applications.
Features
1. 10-point capacitive touch, 1920*1080 resolution, 178 ° viewing angle.
2. Android / Windows optional.
3. Professional terminal scanning, fast identification, fast identification of various product barcodes, payment codes.
4. Zero error: millimeter-level 3D face recognition, the face recognition rate can reach 99.9%, zero errors in 10,000 detections.
5. Versatility: Adopting front paper bin design, for unlocking and changing paper more efficiently.
6. Match with 58mm Seiko printer to achieve automatic cutter and high-speed printing, without paper jam.
7. Stability: Each device has under multiple tests including aging, temperature and humidity testing, static detection, vibration, high voltage, touch and click, display, etc. to ensure stable quality and support 7 * 24 hours of work.
8. 3 Proofing: Aluminum alloy structure, resistant and anti-corrosion, over all anti-riot, IP65 water proof surface.
9. Safety: Using special industrial-grade leakage protection switching power supply, which is more reliable in public places.
10. Diversity: provide a variety of customized services (Appearance color, logo, peripherals adding, etc.).

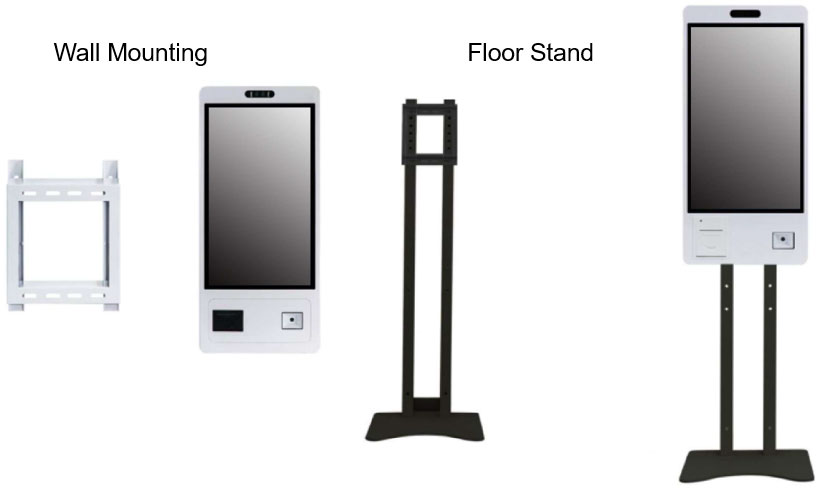

12. Supports floor-stand and wall-mounted dual-scenario applications, breaking space constraints.
13. Integrated design, simple assembly, just plug in when power on, no need to install and debug on site.
Touch Screen Parameters
|
Touch Screen:
|
Capacitive Touch
|
|
Response Time:
|
5ms
|
|
Touch Points:
|
10 points Multi-touch
|
|
Touch Materials:
|
Finger, Stylus
|
|
Scanning Frequency:
|
200 Hz
|
|
Scanning Accuracy:
|
4096x4096
|
|
Communication Mode:
|
Full Speed USB 2.0/3.0
|
|
MTBF:
|
5000 Million Times
|
|
Operating Current:
|
180Ma/DC+5V
|
|
Anti-light Interference:
|
Under Sunlight and Other Lights
|
|
Touch Data Output:
|
Coordinate Output
|
|
Hardness:
|
Mohs 7 Explision-proof Tempered Glass
|
|
Operating System:
|
Windows XP/7/8/10/Linux/MAC/Android
|
|
Driver:
|
Free Driver, Plug and Play
|
LED Screen Parameters
|
Screen Type:
|
LED Backlight, A-type
|
|
Refresh Frequency:
|
60Hz
|
|
Viewing Angle:
|
89°/89°/89°/89° (R/L/U/D)
|
|
MTBF:
|
50,000 hrs
|
Electrical Performance
|
Input Power:
|
110-240V AC 50/60Hz
|
|
Power Output:
|
DC 12V5A
|
|
Standby Power Consumption:
|
1W
|
|
Overall Power Consumption:
|
Android <48W, X86 <60W
|
|
Speakers:
|
4Ω3W
|
Working Environment
|
Operating Temperature:
|
0°C ~ 50°C
|
|
Operating Humidity:
|
10% ~ 80%
|
|
Storage Temperature:
|
-10°C ~ 60°C
|
|
Storage Humidity:
|
5% ~ 90%
|
Computer Configuration
Program: |
Android
|
X86 Standard
|
X86 Deluxe
|
|
Chip:
|
RK3368/RK33288/RK3399
|
Intel Celeron Quad Core J1900
|
Intel Core i3/i5/i7
|
|
Memory:
|
2GB/4GB
|
2GB/4GB/8GB/16GB
|
|
Storage:
|
8GB/16GB/32GB
|
SSD 32GB/64GB/128GB/256GB/512GB, HDD 500GB/1T
|
|
Graphics:
|
Android HD
|
Core Graphics
|
|
Resolution:
|
720P/1080P
|
|
OS:
|
Android 7.1
|
Windows XP/7/8/10/Linux/MAC
|
|
Network:
|
Gigabit Network Card; Wireless Module 802.11a/b/g/n
|
Thermal Printer (Optional)
Option: |
Standard
|
Pro
|
Flagship
|
|
Model:
|
HS-QR24
|
LG-ET-210
|
HS-EC58
|
|
Parameter:
|
I/O type: USB
Printing Speed: 50-80mm / s
Effective printing width: 48mm
Voltage: DC12V
Paper size: 58mm, the maximum diameter of the paper core :30mm
Manual tearing, Paper roll
Capacity:Small
Printer size:Small
|
I/O type: USB
Printing method: direct line thermal
Printing Speed:90MM/S
Print density：384 Dot/Line
Effective printing width: 48mm
Print command: compatible with ESC / POS commands
Reliability: 50 km
Paper size: 58mm, the maximum diameter of the paper core :60mm
Input voltage: DC 12V/3A
Manual tearing, Paper roll
Capacity:Big
Printer size: Big
|
I/O type: USB
Printing method: line thermal
Printing Speed:50MM/S
Print density：384 Dot/Line
Effective printing width: 48mm
Resolution：203DPI
Input voltage：DC 12V
Paper size:58mm, the maximum diameter of the paper core :60mm
Automatic paper cutting, Paper roll
Capacity:Big
Printer size: Big
|
Barcode Scanner (Optional)
Option: |
Standard
|
Flagship
|
|
Model:
|
XN-1065
|
ZD7100
|
|
Parameter:
|
I/O type: USB
Resolution：1.3mp COMS
Recognition accuracy：3 MIL
Light source：LED（630NM±10NM）
Field of view:horizon≥45°vertical≥34°
Reading distance：25MM-240MM（15mil QR）
Spin:360°deflection:±65°tilt:±65°
High recognition accuracy long distance
Fast recognition speed
|
I/O type: USB
Light source: 6500K LED
Sensor image:752 X 480
Rotary tilt deflection:360°，±65°，±60°
Recognition accuracy:5mil Ccde39
Barcode supported:PDF417, MicroPDF417, Data Matrix,
Maxicode, QR Code, MicroQR, AztecHanxin, etc
High recognition accuracy
Full coding system
Large angle
Fast recognition speed
|
