Features Specifications Applications Return


Features

Size: 65" Resolution: 4K 3840 x 2160 UHD
CPU: RK3399 Dual-core A73 and Dual-core A53 Chipset: Rockchip
Touch Type: Project Capacitive Touch (10 Points) View Angle: 89°/89°/89°/89° (R/L/U/D)
Working Voltage: AC100-240v 50/60HZ Color: Silver Bezel, Black Case
Material: Aluminum Alloy Bezel+ SPCC (High Strength Cold Rolled Steel) Back Case Product Dimension: 1483×903×67 mm

P-Cap Multi-Touch Education/Conference AIO Series

is based on dual system of Android and Windows, featuring with 4K full HD display, high sensitive capacitive touch, very narrow side shape, remote audio and video, wireless screen, and smart whiteboard. Mainly for education, conference market, with strong interaction ability, remote conferencing, shared desktops, shared documents, shared whiteboards, and useful video recording.

• A type original panel: UHD 3840*2160 resolution/ 178º wide viewing angles
• Capacitive Touchscreen:True flat 10-point P-Cap touch screen
• RK3399 Dual-core A73 and Dual-core A53
• Built-in pluggable OPS module:Easy switch between dual OS
• Ultra-narrow frame:Aluminum frame with rounded design

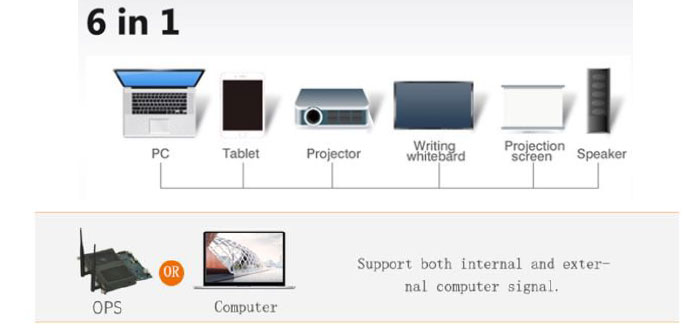

• Smart All in One: Projector, smart whiteboard software, PC, audio, video

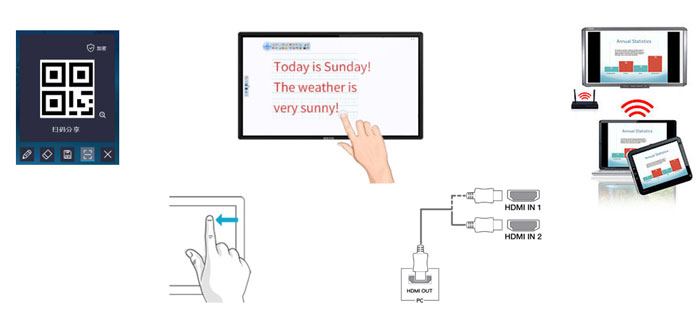

Smart Whiteboard Software

• Smart side pull out menu:Show menu function on Android
• QR code pop up window : Scan QR code content sharing
• Wireless screen sharing:Notebook, smart phone, tablet
• Smart annotation :Onscreen annotate content, take note and more
• HDMI Out support: Projector, smart board, PC, audio, video



Model: UMTC-65C
System
CPU Dual-core A73 and dual-core A53
Memory 4GB RAM
Storage< 32GB EMMC
Decoding Resolution Support 480P/ 576P/ 1080P/ 2160P
Operation System Android 8.0
Play Modes Support timing, loop and spots etc. play modes
Network Support RJ45, WIFI
Image Format JPG/BMP/GIF/TIFF/PNG
Video Format RMVB, FLV, MPEG1/2/4, AVI, WMV, MOV, MP4, TS, etc.
Audio Format MP3, WMA, AAC, etc.
Media Support HTML5 Browser, Video/ Music Playback
Input Interfaces
HDMI 3
DCIN 1
VGA 1
Mini YPbPr 1
Mini AV 1
Audio 3.5mm 1
USN 2.0 1
USB 3.0 1
RJ45 LAN 1
Fiber interface 1
RS232 Serial COM 1
Output Interfaces
HDMI 1
Mini AV 1
Audio 3.5mm 1
Speaker 12W(6Ώ) 2
LCD panel
Panel size 65"
Resolution 4K 3840 x 2160
Aspect ratio 16:9
Support Color 1.07 Billion colors
Brightness 300 cd/m²
Response time 8ms
Contrast ratio 1400:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type 10 Points Projected Capacitive
Touch Glass 3mm tempered glass
Luminousness 90%
Input way Finger touch,or any opaque object
Touch Response ≤10ms
Power Supply
Input voltage AC100-240v 50/60HZ
Standby power ≤1W, Support low power standby mode
Power consumption ≤200W
Enclosure
Material Aluminum Alloy Bezel+ SPCC Back Case
Color Silver Bezel, Black Case
Operating Environment
Working temperature 0℃~50℃
Storage temperature -10℃~60℃
Relative humidity 5-95% (non-condensing)
Packing Details
Net weight 56.6 kg
Gross weight 60 kg
Product dimension 1483x903x67 mm
Packing size TBD
Other
Warranty 1 year warranty

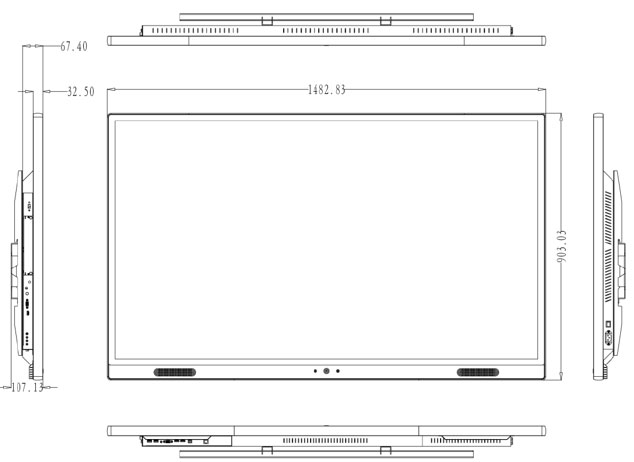

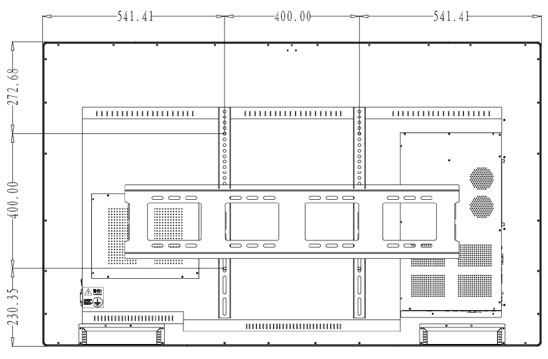

Drawing

Application

School
Museum
Bank
Exhibition Hall
Meeting Center
Restaurants
Supermarkets Chain
Fast food store
Pharmacy
Patient monitoring systems
