Key Feature
Size: | 43 Inch | Resolution: | 1920*1080 |
---|---|---|---|
Touch Type: | Project Capacitive Touch (10 Points) | View Angle: | 89°/89°/89°/89° (R/L/U/D) |
Working Voltage: | AC100-240v 50/60HZ | Color: | Black |
Material: | Aluminum Alloy Bezel+ SPCC (High Strength Cold Rolled Steel) Back Case | Product Dimension: | 995.2mm×583.4mm×53.2mm |
1. 43" Full HD 1920x1080 resolution.
2. Wide viewing angle H:178° V:178° Panel.
3. Brightness 350nits, Contrast 5000:1, MTBF 50000 hrs.
4. Slim design with aluminum alloy bezel + SPCC (High Strength Cold Rolled Steel) Back Case.
Model: UMZK-43BFATD | |
I/O Interfaces | |
USB | 1x USB |
HDMI | 1xHDMI |
DVI-D | 1xDVI-D |
Display Port | 1×DP 1.2 |
Audio Input | PJ-325, φ CK3.5 |
Audio Line Out | PJ-325, φ CK3.5 |
LCD panel | |
Panel size | 43" |
Resolution | 1920x1080 |
Aspect ratio | 16:9 |
Support Color | 16.7M colors |
Brightness | 350 cd/m² |
Response time | 6ms |
Contrast ratio | 5000:1 |
View angle | 89°/89°/89°/89° (R/L/U/D) |
Touch panel | |
Touchscreen Type | 10 Points Projected Capacitive |
Luminousness | 90% |
Surface Hardness | 6H |
Power Supply | |
Input voltage | AC100-240v 50/60HZ |
Standby power | ≤1W, Support low power standby mode |
Power consumption | ≤80W |
Enclosure | |
Material | Aluminum Alloy Bezel+ SPCC Back Case |
Color | Silver Bezel, Black Case |
VESA mounting | 400x400mm |
Operating Environment | |
Working temperature | 0℃~50℃ |
Storage temperature | -10℃~60℃ |
Relative humidity | 5-95% (non-condensing) |
Packing Details | |
Net weight | 23 kg |
Gross weight | 28 kg |
Product dimension | 995mm*583mm*18.4mm |
Packing size | 1120mm*690mm*170mm |
Other | |
Warranty | 1 year warranty |

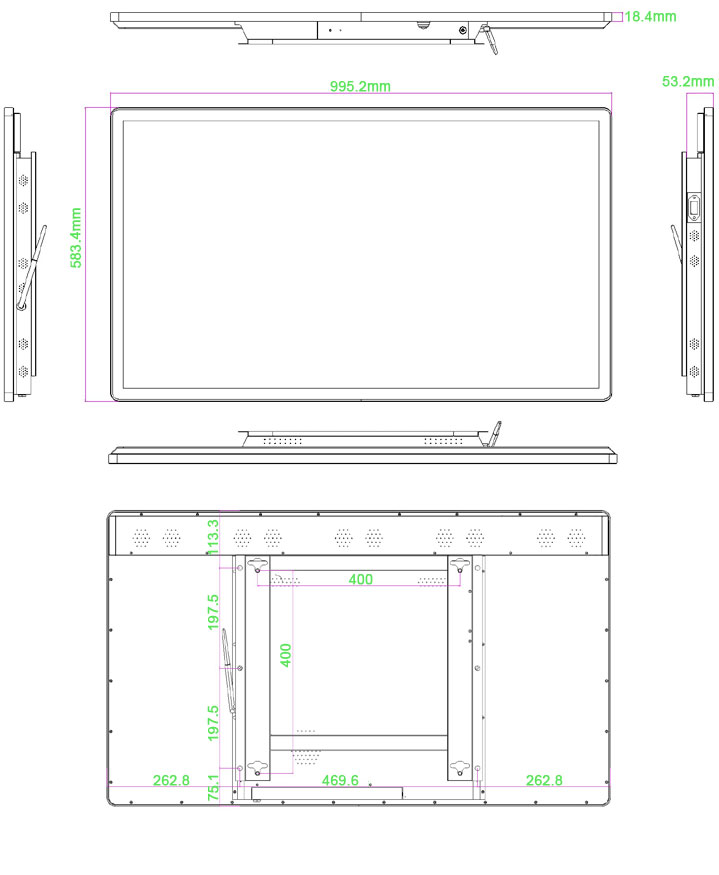

Drawing
Application
School
Museum
Bank
Exhibition Hall
Meeting Center
Restaurants
Supermarkets Chain
Fast food store
Pharmacy
Patient monitoring systems
