Features Specifications Applications Return


Key Feature

Size: 55 Inch Resolution: 1920*1080
Touch Type: Project Capacitive Touch (10 Points) View Angle: 89°/89°/89°/89° (R/L/U/D)
Working Voltage: AC100-240v 50/60HZ Color: Black
Material: Aluminum Alloy Bezel+ SPCC (High Strength Cold Rolled Steel) Back Case Product Dimension: 1263mm×734.2mm×53.2mm

Industrial 55 inch 10 points P-Cap Touch Display

1. 55" Full HD 1920x1080 resolution.
2. Wide viewing angle H:178° V:178° Panel.
3. Brightness 350nits, Contrast 5000:1, MTBF 50000 hrs.
4. Slim design with aluminum alloy bezel + SPCC (High Strength Cold Rolled Steel) Back Case.

Model: UMZK-55BFATD
I/O Interfaces
USB 1x USB
HDMI 1xHDMI
DVI-D 1xDVI-D
Display Port 1×DP 1.2
Audio Input PJ-325, φ CK3.5
Audio Line Out PJ-325, φ CK3.5
LCD panel
Panel size 55"
Resolution 1920x1080
Aspect ratio 16:9
Support Color 16.7M colors
Brightness 350 cd/m²
Response time 6ms
Contrast ratio 5000:1
View angle 89°/89°/89°/89° (R/L/U/D)
Touch panel
Touchscreen Type 10 Points Projected Capacitive
Luminousness 90%
Surface Hardness 6H
Power Supply
Input voltage AC100-240v 50/60HZ
Standby power ≤1W, Support low power standby mode
Power consumption ≤80W
Enclosure
Material Aluminum Alloy Bezel+ SPCC Back Case
Color Silver Bezel, Black Case
VESA mounting 400x400mm
Operating Environment
Working temperature 0℃~50℃
Storage temperature -10℃~60℃
Relative humidity 5-95% (non-condensing)
Packing Details
Net weight 37 kg
Gross weight 46 kg
Product dimension 1300mm*774mm*31mm
Packing size 1375mm*855mm*170mm
Other
Warranty 1 year warranty

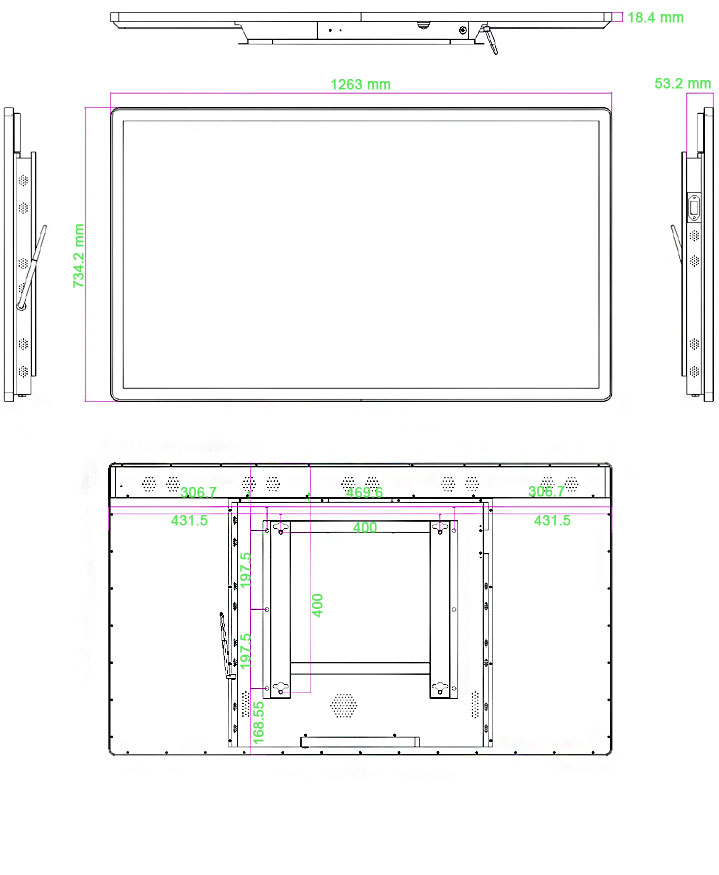

Drawing

Application

School
Museum
Bank
Exhibition Hall
Meeting Center
Restaurants
Supermarkets Chain
Fast food store
Pharmacy
Patient monitoring systems
