Model:UMSC07

System

CPU

Intel® Celeron J1900, quad core, 2.0GHz, fanless

Chipset

Intel ValleyView SSA-CUnit

Memory

2G DDR3 (4G, 8G optional)

Hard Drive Capacity

64G SSD

Hard Drive Optional

SSD: 32G, 128GB, 256GB

HDD: 500GB, 1TB

Graphics

CPU Integrated graphics HD Graphics and support 1080p HD photo quality

Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out

Network

1×Realtek RTL 8111E Gigabit Ethernet controller

Wireless Network

WIFI

I/O Interface

2×USB 2.0, 2×USB 3.0, 2 x COM RS232

1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC

Operation System

Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.

LCD panel

Panel size

7"

Resolution

1024*600

Aspect ratio

16:9

Support Color

16.7M colors

Brightness (cd/m²)

1000 nits, sunlight readable

Response time

5ms

Contrast ratio

800:1

View angle

75°/75°/75°/75° (R/L/U/D)

Touch panel

Touchscreen Type

Project Capacitive Touch (10 points)

Touch Interface

USB (RS232 optional)

Touch response time

2ms

Luminousness

90%

Surface Hardness

7H

Working life

>50 million times

Touch options

( 5 wire resistive touch, IR touch optional)

Power Supply

External Power Supply

AC 100 - 240V

Working voltage

DC 12V

Power consumption

≤45W

Enclosure

Material

Aluminum Alloy bezel+ High strength cold rolled steel back case

Color

Silver, Black, white, color can be customized

VESA mounting

75×75mm

IP grade

front panel IP65 waterproof

Operating Environment

Temperature Range

operating: -20 to 70°C, storage: -30 to 80°C

Relative humidity

5%~95% @ 40° C, non-condensing

Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

Packing Details

Net weight

1.5kg

Gross weight

2kg

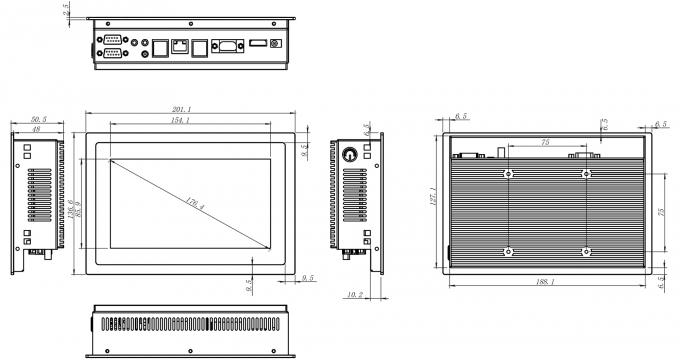

Product Dimension

20.11*13.66*5.05cm

Packing size

40*33*16cm

Accessories

Power adapter, embedded screws, user manual, warranty card

Other

Mounting (options)

embedded mounting screws

wall mounting brackets (optional)

desk stand holder (optional)

Warranty

1 year warranty
