Appearance Characteristics
1. Switchable Camera (Can be Hidden): The camera can protect the patient's privacy while also helping the doctor monitor the patient's condition. The camera can be switched on or off at any time.
2. Equipped with Call Handle and Call Button: Doctors and patients can easily communicate with each other at any time. This feature helps doctors monitor changes in the patient's condition.
3. Wall-Mountable VESA: The equipment is easy to install and does not take up space of other medical equipment.
4. Telescopic Support: The monitor height can be adjusted for patient-friendly use.
User Scenarios
1. Advertising Display: It can be used for indoor advertising play, video play, etc. It can display the hospital's strengths through information display, and can also play entertainment content for patients to watch.

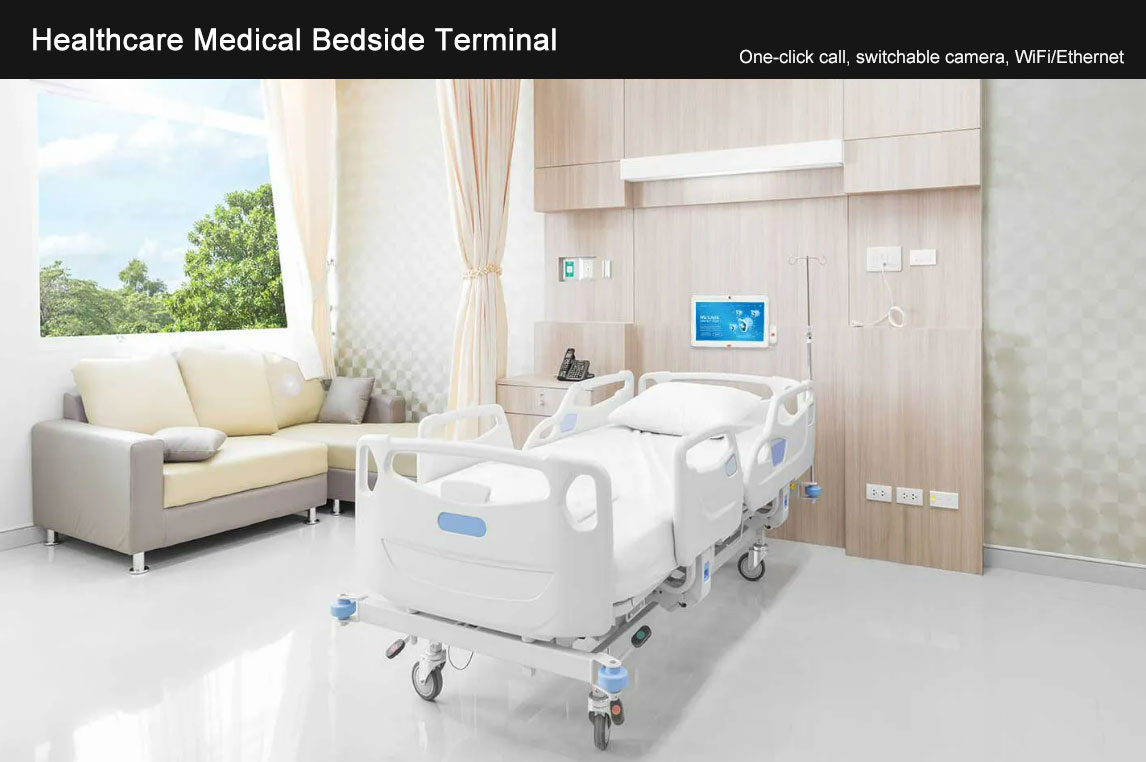

2. Medical Consultation: It is often installed at the patient's bedside and used as a medical consultation tablet. Our product enables rapid communication between doctors and patients, thereby improving treatment efficiency.
3. Production Monitoring Screen: It can be used to monitor the production process in real-time, making it easy to control the production progress.
4. Service Evaluation: It can be used for service evaluation, information questionnaire surveys, and more.
Functions
1. Power Over Ethernet (POE)
2. Serial Port: It can interact with other medical devices. (Connectable to other machines)
3. One-Button Call: This feature is mainly used in medical services, enabling doctors to deal with a patient's sudden illness promptly.
Software System
Our machine has a strong CPU performance (Quad-Core Processor) and can run all kinds of applications smoothly. Different memory configurations are available.
1. Standard Configuration: RK3288 2+16G Android 8.1 system (Android 5.1/6.0/8/9.1/10.1/11 available)
2. High Version: RK3399 Android 9.0 (memory available) (Android 7.1/9.0/10.0/11 available)
Hardware
1. Interfaces: SD Card, USB, Serial Port, Headphone Jack, OTG Port, RJ45
2. Speaker: 2x3W
3. Microphone
System
|
CPU:
|
RK3288 Quad core cortex A17 (RK3399,Dual-core A72+quad-core A53 Optional)
|
|
RAM:
|
2GB Optional (4GB)
|
|
Internal Memory:
|
16GB (Optional 32/64GB)
|
|
Operation System
|
Android 7.1/10.0
|
|
Touchscreen:
|
10-Point Capacitive Touch
|
Display
|
Panel Size:
|
10.1"/13.3"/15.6"
|
|
Resolution:
|
1920*1080
|
|
Display Mode:
|
Normally Black
|
|
Viewing Angle:
|
85/85/85/85(L/R/U/D)
|
|
Contrast Ratio:
|
800:1
|
|
Luminance:
|
250 cdm2
|
|
Aspect Ratio:
|
10.1"(16:10) / 13.3"(16:9) / 15.6"(16:9)
|
Network
|
WiFi:
|
802.11b/g/n/ac,2.4G/5G
|
|
Ethernet:
|
100M/1000M
|
|
Bluetooth:
|
Bluetooth 4.0
|
Interface
|
Type-C:
|
Support
|
|
Power Jack:
|
DC Power Input
|
|
RJ45:
|
Ethernet Interface(POE function standard, IEEE802.3at,POE+,class 4, 25.5W)
|
|
USB:
|
USB Host 2.0
|
|
Serial COM:
|
8PIN, 2.0MM RS232
|
|
Earphone:
|
3.5mm Earphone + Microphone
|
Media Plays
|
Video Format:
|
MPEG-1, MPEG-2, MPEG-4, H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K
|
|
Audio Format:
|
MP3/WMA/AAC ect.
|
|
Photo:
|
JPEG
|
Others
|
VESA:
|
100mm*100mm
|
|
NFC:
|
Optional ,(NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica)
|
|
Speaker:
|
2*3W
|
|
Camera:
|
5.0MP, Front Camera
|
|
Internal Microphone:
|
Standard Single Microphone
|
|
Language:
|
Multi-language
|
|
Working Temp:
|
0~50 Deg C
|
|
Certificate:
|
CE,FCC,RoHS,IEC60601-1-2
|
Accessories
|
Power Adapter:
|
Adapter, 12V/2A
|
|
User Manual:
|
Yes
|
|
Call Handgrip:
|
Yes
|
Product Dimensions
|

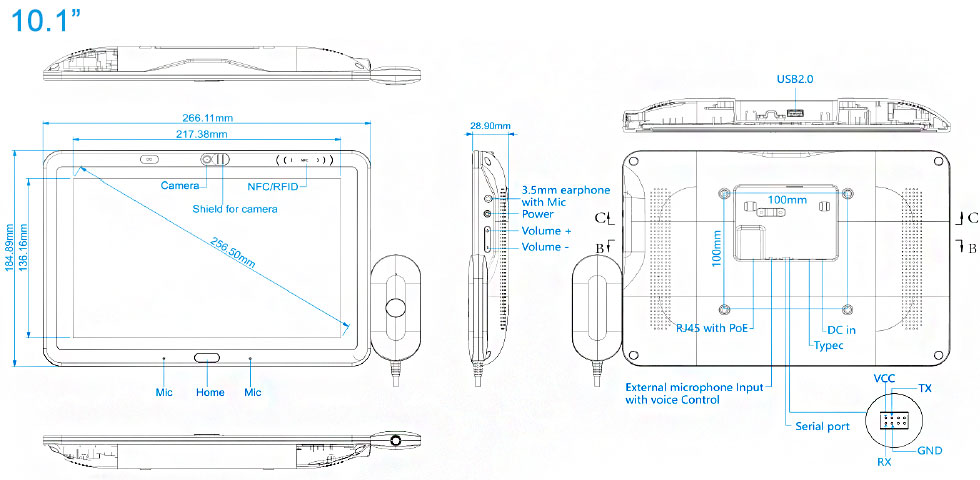

11.6":
|
266.11mm(L), 184.89mm(W), 28.90mm(H)
|
|

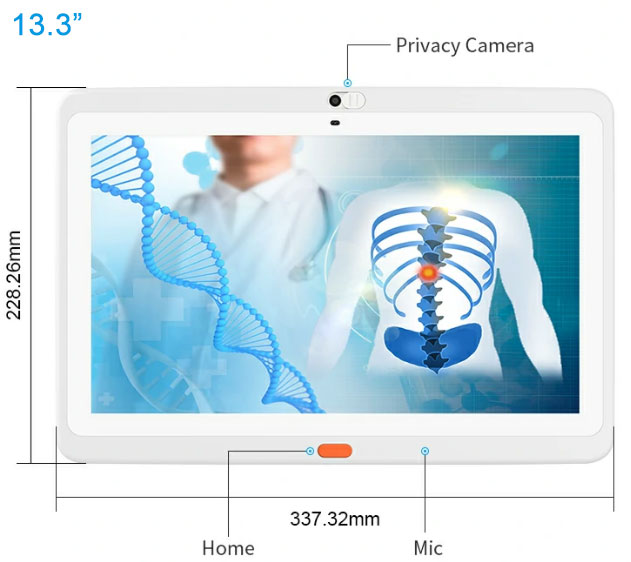

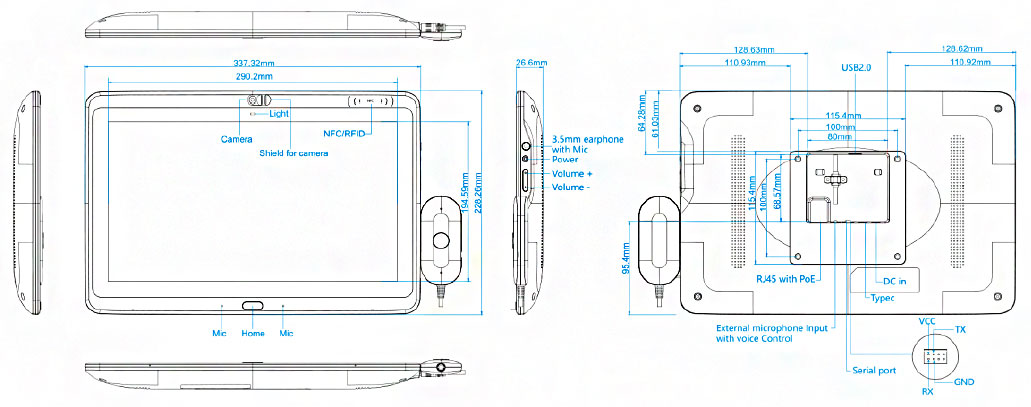

13.3":
|
337.32mm(L), 228.20mm(W), 26.60mm(H)
|
|

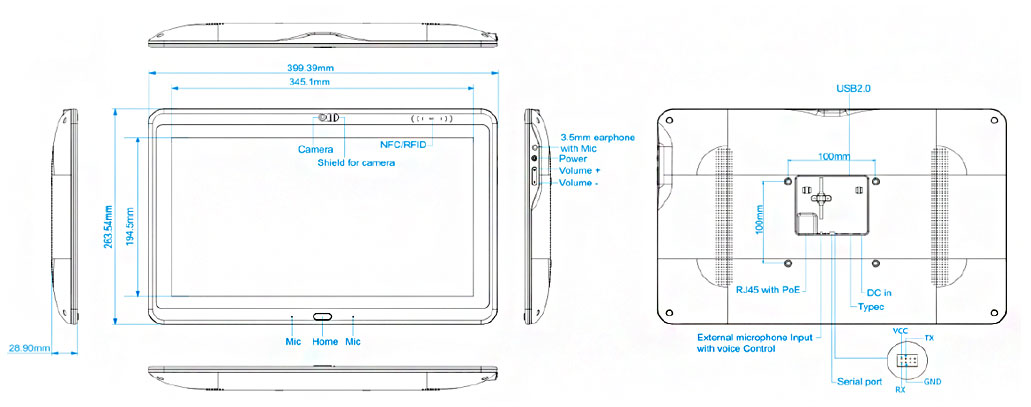

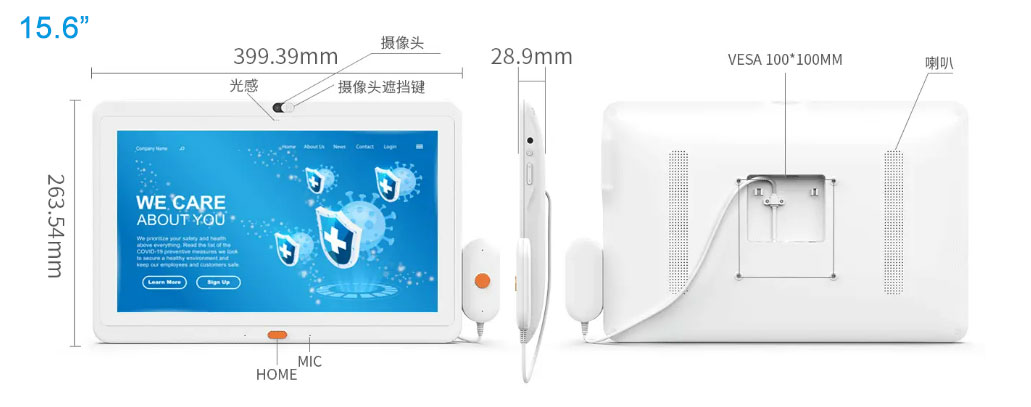

15.6":
|
399.39mm(L), 263.54mm(W), 28.90mm(H)
|
